Aluminium Rolling Shutters

Features

Manufactured from AA6063 grade TS Aluminium Extrusions with carefully designed interlocking groove and an advanced­design auto cut-off edge endlock. Anodised finish is at 1 2-15 microns up to 25 microns if so required in projects. The shutters can be manually or electrically operated. The lightweight model is especially ideal for manual handpull operation. Shutters can come with slotted holes, either partially or fully. Shutters can also be finished with PVC inserts that allow for viewing of goods on display within the premises, whilst providing security and natural light flow.

Applications

Our aluminium rolling shutters offer versatile, reliable protection for any space. They are the ideal security solution for retail shop-fronts, private garages, schools, industrial facilities, and both commercial and residential buildings.

Project Gallery

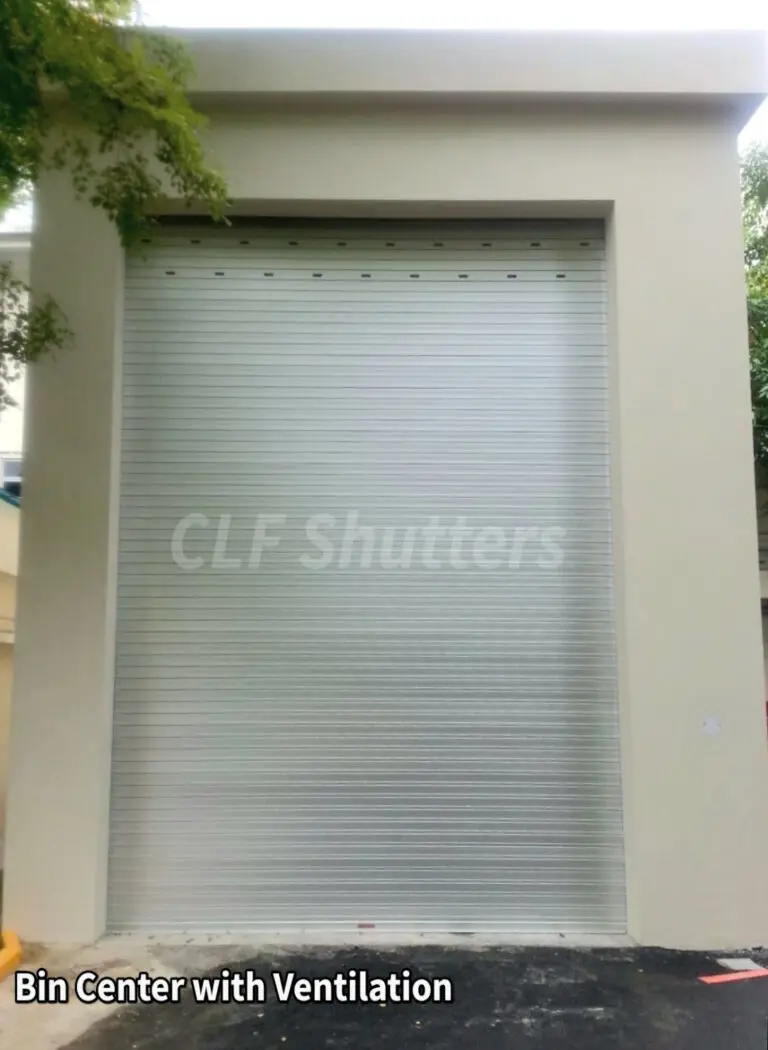

1776308636601

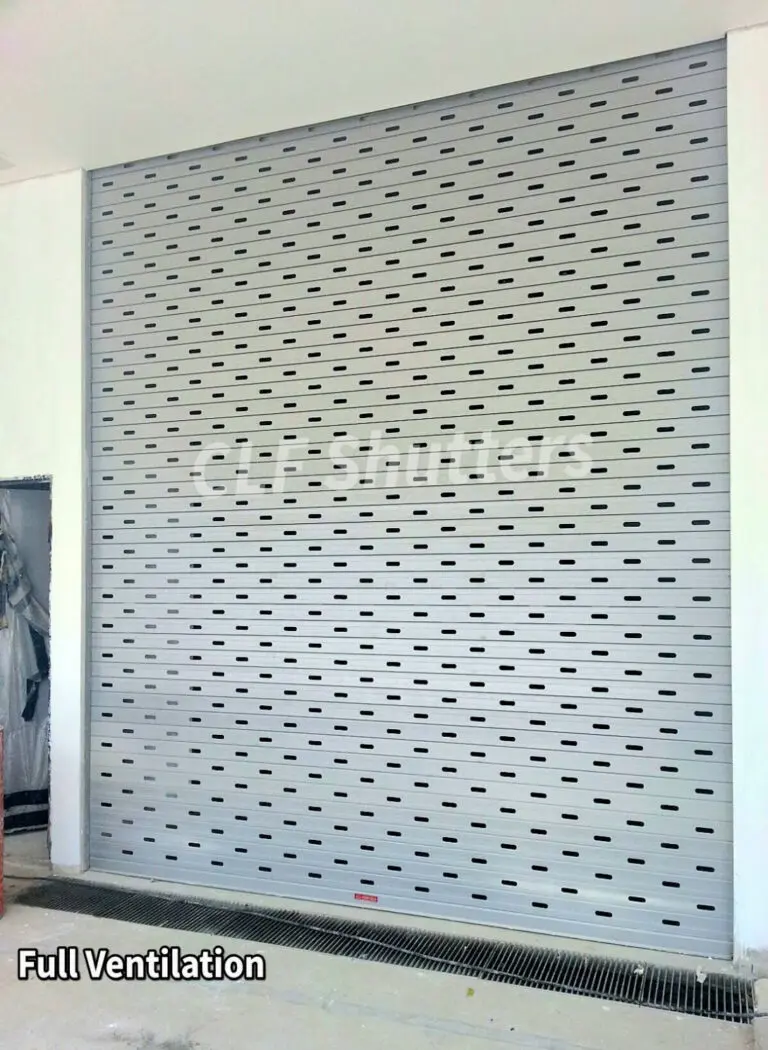

1776308519676

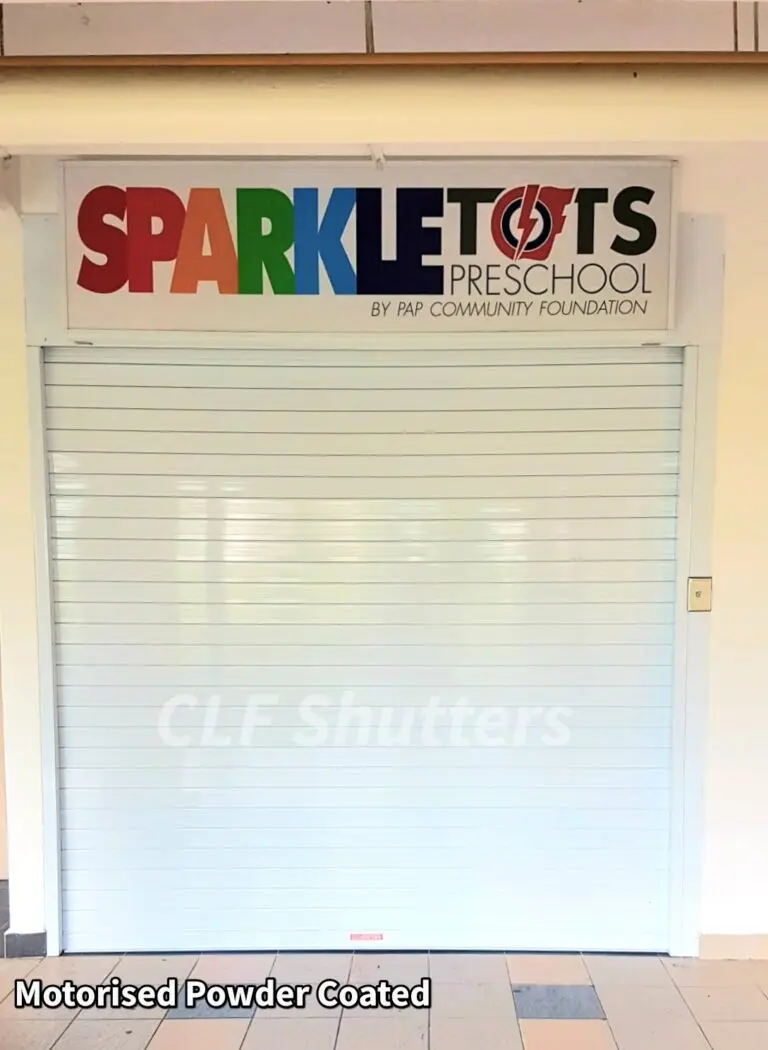

1776308354289

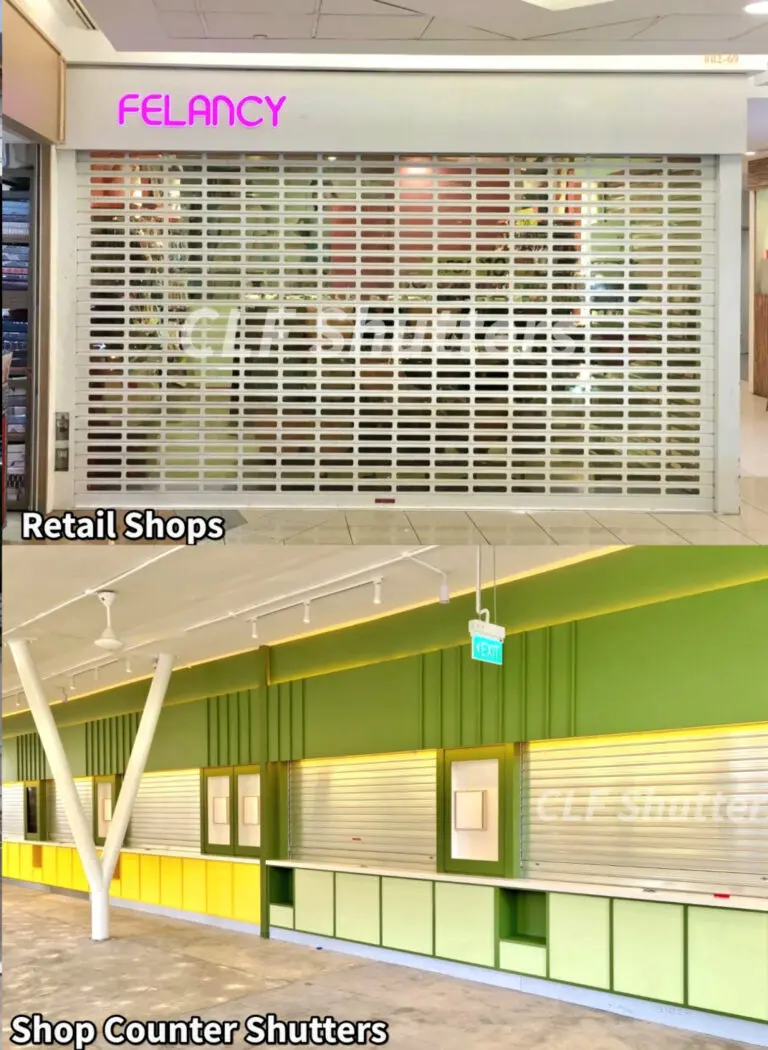

1779534320295

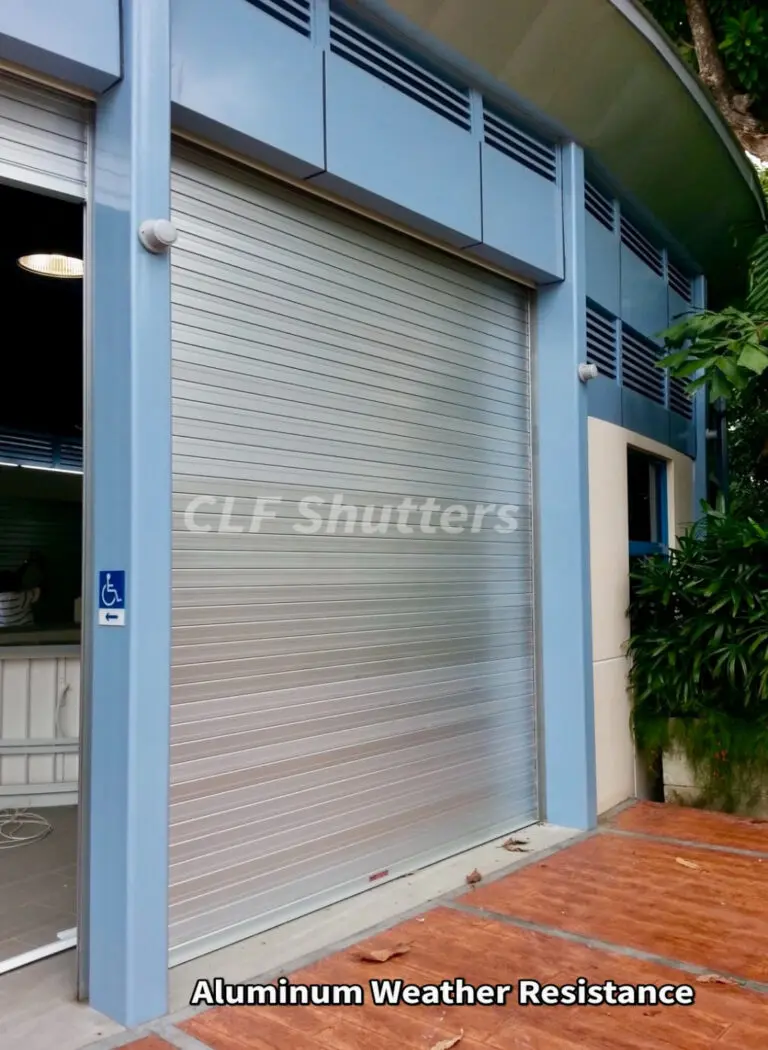

1776308999951

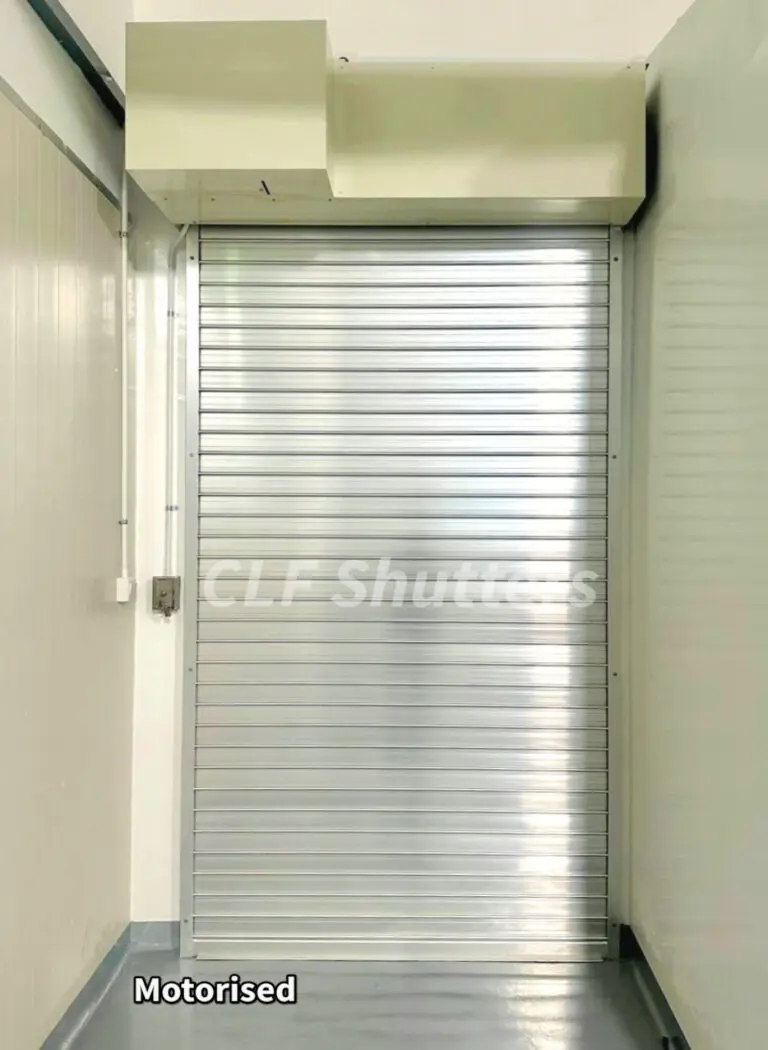

1776308817470

Specifications

Curtain+/- l .2mm Curve profile or+/- 1.10mm Flat profile Aluminium slats.
Curtain Bottom BarHeavy-duty extruded aluminium T­profile of minimum 5mm thickness. Comes in double-walled profile for motorized shutters.
Motor Operatorc/w Proprietary brake release system and manual override endless hand-chain.
FinishShutters can be in anodised, powder­coated or fluorocarbon-coated finish.

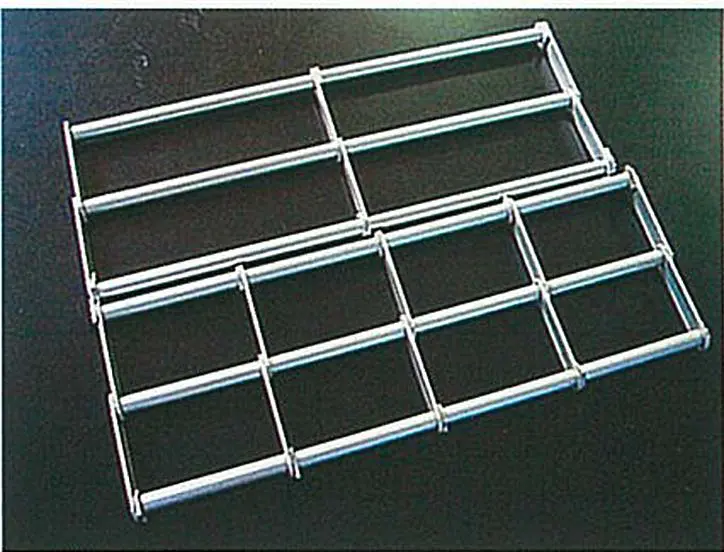

Rolling Grilles
• Brickform or Parallel Rectangle Design
• Option for PVC inserts

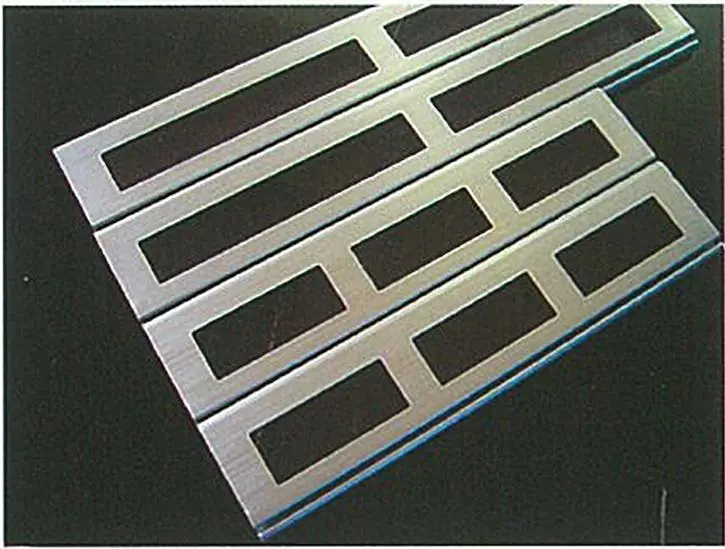

Aluminium Rolling Shutters with PVC inserts

Aluminium Rolling Shutters

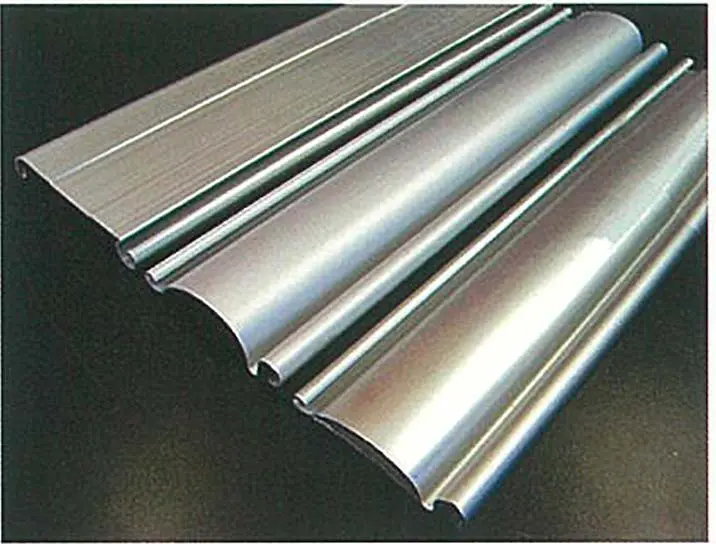

• Flat or Curve
• Single or Double-walled profile
